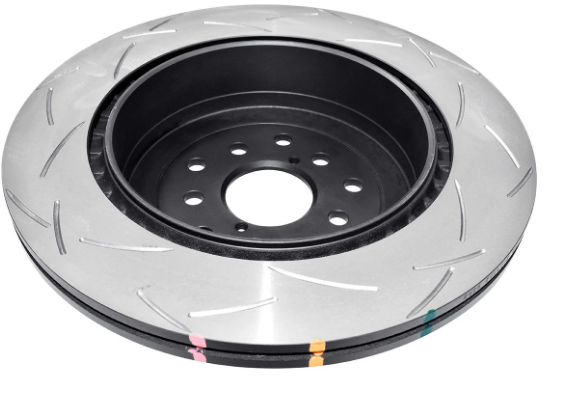

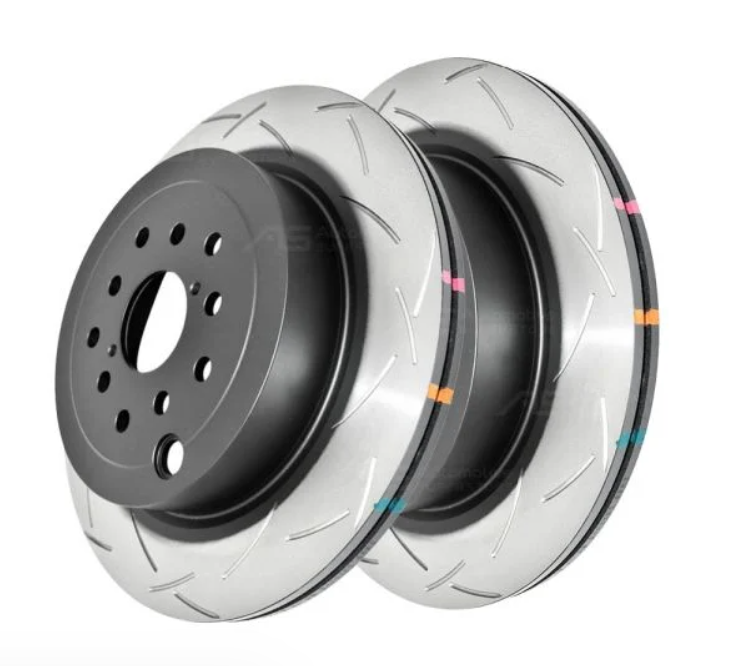

Subaru BRZ / Toyota 86 DBA T3 4000 Series Slotted Rotors Rear PAIR (Brembo Calipers)

DBA's 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA's revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA's 4000 Series T3 rotors are recommended for all performance applications from street driving, 4_4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

Rotor Dimensions:

• Diameter (mm): 316
• Thickness (mm): 20
• Height (mm): 63.5
• Centre Hole Diameter (mm): 58
• Minimum Thickness (mm): 18
• Wheel/Stud Holes: 10


Vehicle Fitment:

• • 2008-2014 Subaru STI GRF/GVF
  • 2015-2017 Subaru STI VAB
  • 2017-2019 Subaru BRZ tS (Brembo)
  • 2017-2019 Toyota 86 (Brembo)
  • 2022+  Subaru BRZ tS (Brembo)
  • 2022+ Toyota GR86 Sports Pack (Brembo)



  Also suits following vehicles with STI Brembo conversion (requires modification to dust shield):

  • 2008-2014 Subaru WRX
  • 2015-2021 Subaru WRX
  • 2012-2021 Subaru BRZ
  • 2012-2021 Toyota 86 GT/GTS
  • 2022+ Subaru BRZ
  • 2022+ Toyota GR86
